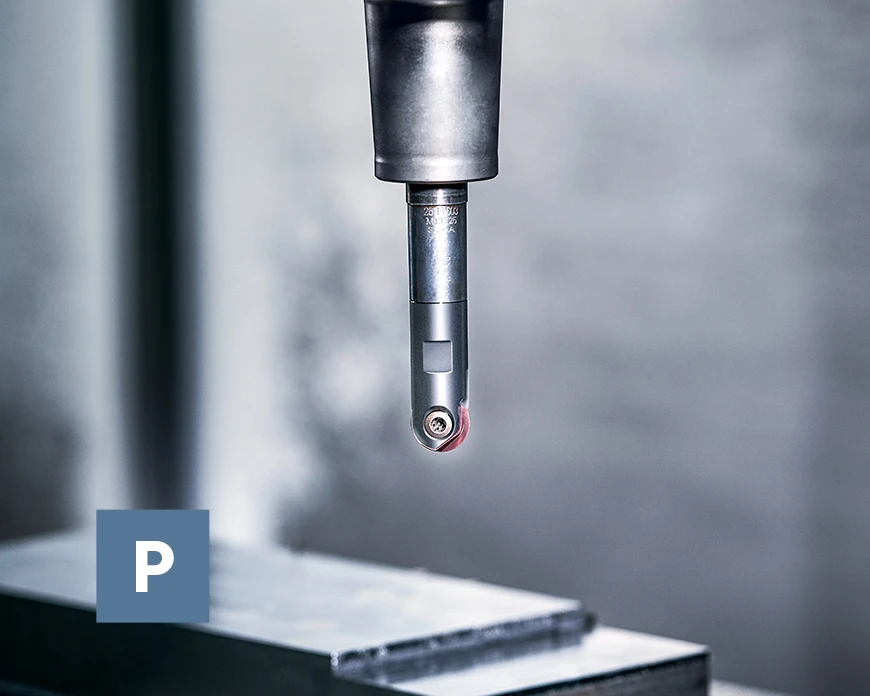

Customer case study with Uniworx®, the universal milling cutter for finish machining.
13. January 2026
Uniworx® processes 1.2312
Uniworx® processes 1.2312
| Variant 1 | Variant 2 | |
| Tool | 16 214 SG | 16 214 SG |
| dc (nominal diameter) | 16 mm | 0.63 inch | 16 mm | 0.63 inch |
| Arbor | 75 10 603 | 50 10 603 |
| Cooling | with air | with air |
| Indexable insert | 16 835 V | 16 835 V |
Technical data | metric sizes
| Variant 1 | Variant 2 | |
| Vc (cutting speed) | 251 m/min | 219 m/min |
| n (revoltions) | 5000 1/min | 4350 1/min |
| fz (feed per tooth) | 0,4 mm | 0,3 mm |
| Vf (feed rate) | 4000 mm/min | 2610 mm/min |
| ap (depth of cut) | 0,3 mm | 0,15 mm |
| ae (width of cut) | 0,4 mm | 0,15 mm |
Technical data | imperial sizes
| Variant 1 | Variant 2 | |
| SFM (surface feet per minute) | 823.5 feet/min | 718,504 feet/min |
| n (revoltions) | 5000 1/min | 4350 1/min |
| IPT (inches per tooth) | 0.0158 inch | 0.0118 inch |
| IPM (inches per minute) | 157.4803 inch/min | 102.756 inch/min |
| DOC (depth of cut) | 0.0118 inch | 0.006 inch |
| WOC (width of cut) | 0.0158 inch | 0.006 inch |
