14. May 2026

Planworx® processes materials K

Cast iron
  • Customer case studies
  • Milling cutter bodies
  • Planworx®
  • Cast iron

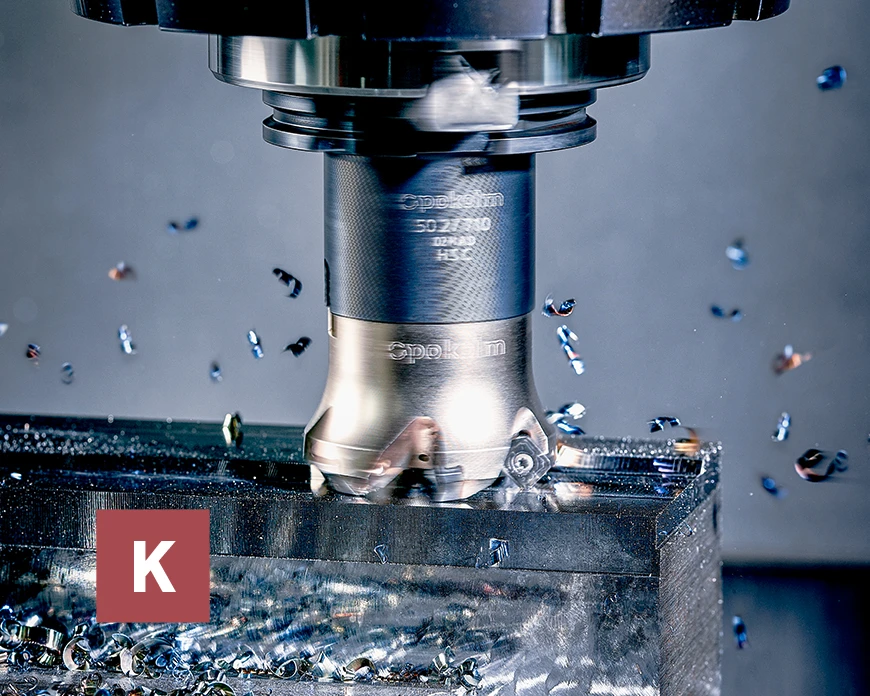

Planworx, the universal genius of face milling, machines cast iron.

The Planworx® indexable milling cutter is an highly economical face milling cutter with great cutting depth and outstanding running smoothness.

Processing task in GJS-900

 Variant 1Variant 2
Tool8 80 33110 100 331
dc (nominal diameter)80 mm | 3.1496 inch100 mm | 3.9370 inch
ArborHSK 100HSK 100
Coolingdrydry
Indexable insert05 31 86205 31 862

Technical data | metric sizes

 Variant 1Variant 2
Vc (cutting speed)150 m/min150 m/min
n (revoltions)597 1/min478 1/min
fz (feed per tooth)0,2 mm0,2 mm
Vf (feed rate)955 mm/min955 mm/min
ap (depth of cut)3 mm3 mm
ae (width of cut)60 mm80 mm
Machining volume172 cm³/min229 cm³/min

Technical data | imperial sizes

 Variant 1Variant 2
SFM (surface feet per minute)492.126 feet/min492.126 feet/min
n (revoltions)597 1/min478 1/min
IPT (inches per tooth)0.0079 inch0.0079 inch
IPM (inches per minute)37.5984 inch/min37.5984 inch/min
DOC (depth of cut)0.1181 inch0.1181 inch
WOC (width of cut)2.3622 inch3.1496 inch
Machining volume67.7165 inch³/min90.1575 inch³/min
