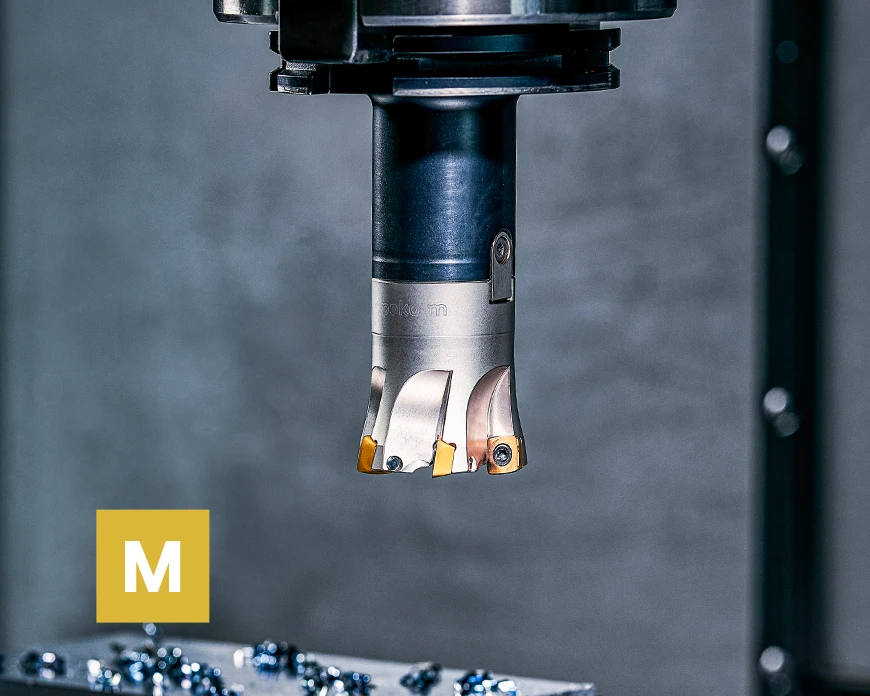

Quadworx® stands for universal use and maximum cost-effectiveness in stainless steel.
Quadworx® processes materials M
Processing task in 1.4301
| Tool | 3 25 248 |
| dc (nominal diameter) | 25 mm | 0.9843 inch |
| Cooling | dry |
| Indexable insert | 03 48 896 |
Technical data | metric sizes
| Vc (cutting speed) | 235 m/min |
| n (revolutions) | 3000 1/min |
| fz (feed per tooth) | 0.55 mm |
| Vf (feed rate) | 5000 mm/min |
| ap (depth of cut) | 40 mm |
Technical data | imperial sizes
| SFM (surface feet per minute) | 771 feet/min |
| RPM (revolutions) | 3000 RPM |
| IPT (inches per tooth) | 0.0217 inch |
| IPM (inches per minute) | 196.8504 inch/min |
| DOC (depth of cut) | 1.5748 inch |
Processing task in 1.4501
| Tool | 5 52 349 |
| dc (nominal diameter) | 52 mm | 2.0472 inch |
| Cooling | with water |
| Indexable insert | 04 49 896 |
Technical data | metric sizes
| Vc (cutting speed) | 60 m/min |
| n (revolutions) | 367 1/min |
| fz (feed per tooth) | 0,6 mm |
| Vf (feed rate) | 1100 mm/min |
| ap (depth of cut) | 0,8 mm |
| ae (width of cut) | 30 mm |
Technical data | imperial sizes
| SFM (surface feet per minute) | 196.9 feet/min |
| RPM (revolutions) | 367 RPM |
| IPT (inches per tooth) | 0.0236 inch |
| IPM (inches per minute) | 43.3071 inch/min |
| DOC (depth of cut) | 0.0315 inch |
| WOC (width of cut) | 1.1811 inch |
