Quadworx® processes materials S

Super alloys and titanium alloys
  • Customer case studies
  • Milling cutter bodies
  • Quadworx®
  • Super alloys and titanium alloys

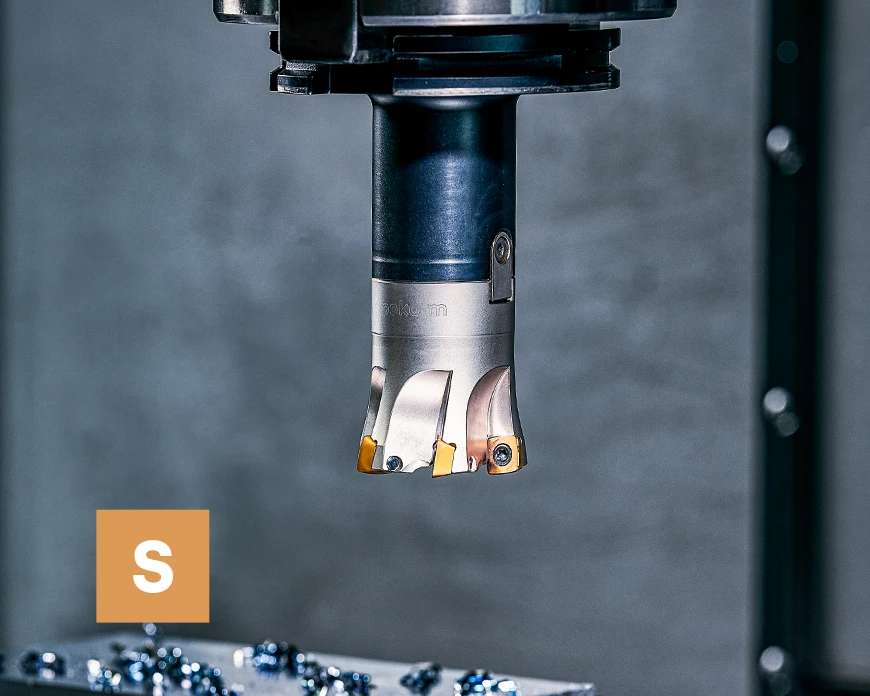

Quadworx, the High-feed milling cutter for universal use and maximum cost-effectiveness, processes special alloys and titanium.

Quadworx® stands for universal use and maximum cost-effectiveness in super alloys and titanium alloys.

Processing task in 2.4632

Tool5 42 248
dc (nominal diameter)42 mm | 1.6535 inch
Coolingwith water
Indexable insert03 48 896

Technical data | metric sizes

Vc (cutting speed) 40 m/min
n (revolutions)300 1/min
fz (feed per tooth)0,2 mm
Vf  (feed rate)300 mm/min
ap (depth of cut)0,7 mm
ae (width of cut)25 mm

Technical data | imperial sizes

SFM (surface feet per minute)131.2 feet/min
RPM (revolutions)300 RPM
IPT (inches per tooth)0.0079 inch
IPM (inches per minute)11.811 inch/min
DOC (depth of cut)0.0276 inch
WOC (width of cut)0.9843 inch

Processing task in Titanium

Tool5 52 349
dc (nominal diameter)52 mm | 2.0472 inch
Coolingwith water
Indexable insert04 49 896

Technical data | metric sizes

Vc (cutting speed) 60 m/min
n (revolutions)367 1/min
fz (feed per tooth)1 mm
Vf  (feed rate)1450 mm/min
ap (depth of cut)1 mm
ae (width of cut)40 mm

Technical data | imperial sizes

SFM (surface feet per minute)196.9 feet/min
RPM (revolutions)367 RPM
IPT (inches per tooth)0.0394 inch
IPM (inches per minute)57.0866 inch/min
DOC (depth of cut)0.0394 inch
WOC (width of cut)1.5748 inch
