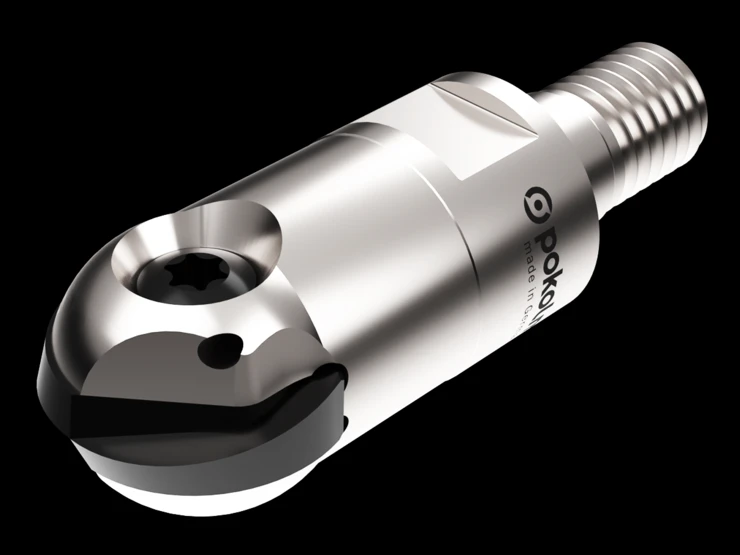

20 214-IKZ
Uniworx® tool systems are considered universal milling cutters in the field of fine machining. Internal coolant supply (ICS) is now standard in all Uniworx® milling cutter bodies.
19. August 2025
Uniworx® with ICS
Internal coolant supply is now standard in all milling cutter bodies

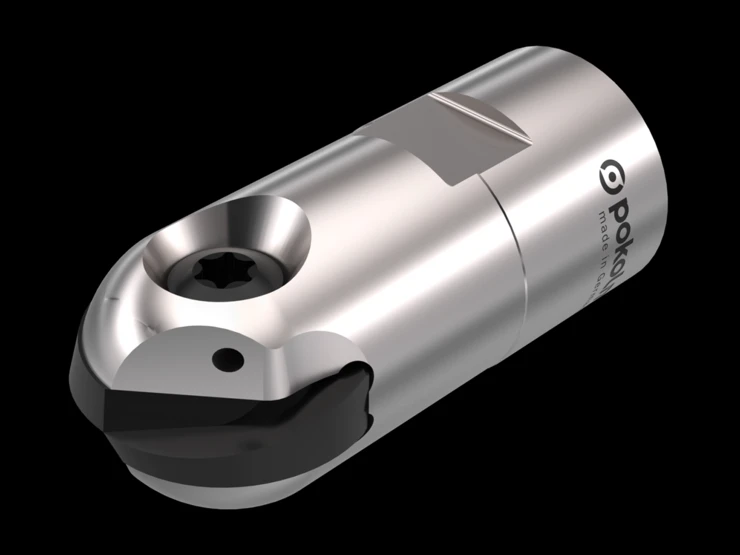

20 214 SG-IKZ

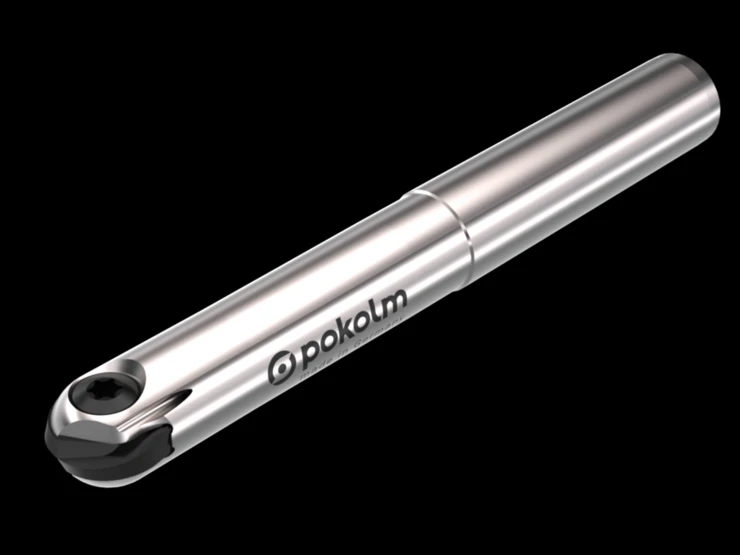

50 12 114-IKZ
Uniworx® is used for finishing steel, cast iron, and hard materials. The milling cutter bodies, cutting inserts, and cutting materials are optimally matched to each other and guarantee efficient machining of free-form surfaces.
When using Uniworx® milling tools, you can flexibly switch between a ball plate and a torus plate. Both variants can plunge directly into the material and are therefore capable of point-cutting drilling.
The internal coolant supply in all Uniworx® milling tools increases process reliability in application. Disruptive chips are removed by the coolant.
Features
- Can be used with ball or torus plates
- Reversible cutting insert easy to position
- V-shaped insert seat for form-fit and force-fit connection of tool holder, insert, and fitting screw
- Coatings and cutting materials specially designed for fine chip removal
- Helical flutes in the insert ensure smooth cutting behavior and high surface quality
- High process reliability thanks to internal coolant supply
