Vworx processes materials N

Non-ferrous metals and plastics
  • Customer case studies
  • Vworx
  • Milling cutter bodies
  • Non-ferrous metals and plastics

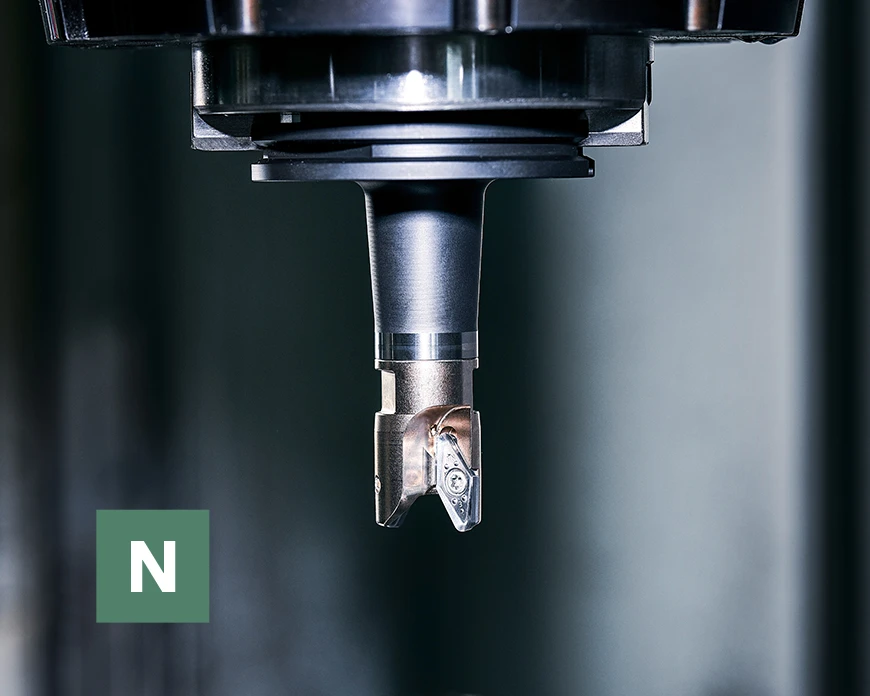

Vworx, the roughing and pre-finishing specialist, processes Non-ferrous metals and plastics.

Vworx are the roughing and pre-finishing specialists for non-ferrous machining.

Processing task in 3.3547 (AlMgSi4,5)

 Variant 1Variant 2
Tool20 26120 261
dc (nominal diameter)20 mm | 0.7874 inch20 mm | 0.7874 inch
Arbor100 10 601100 10 601
Overhang190 mm | 7.4803 inch182 mm | 7.4803 inch
Coolingwith waterwith water
Indexable insert02 11 82002 11 820

Technical data | metric sizes

 Variant 1Variant 2
Vc (cutting speed) 314 m/min440 m/min
n (revolutions)5000 1/min7000 1/min
fz (feed per tooth)0,3 mm0,15 mm
Vf  (feed rate)3000 mm/min2100 mm/min
ap (depth of cut)1,5 mm0,15 mm
ae (width of cut)1 mm0,1 mm

Technical data | imperial sizes

 Variant 1Variant 2
SFM (surface feet per minute)1030.18 feet/min1443.57 feet/min
RPM (revolutions)5000 RPM7000 RPM
IPT (inches per tooth)0.0118 inch0.0059 inch
IPM (inches per minute)118.1102 inch/min82.6772 inch/min
DOC (depth of cut)0.0591 inch0.0059 inch
WOC (width of cut)0.0394 inch0.0039 inch
