Application data

Spinworx® HT - imperial sizes

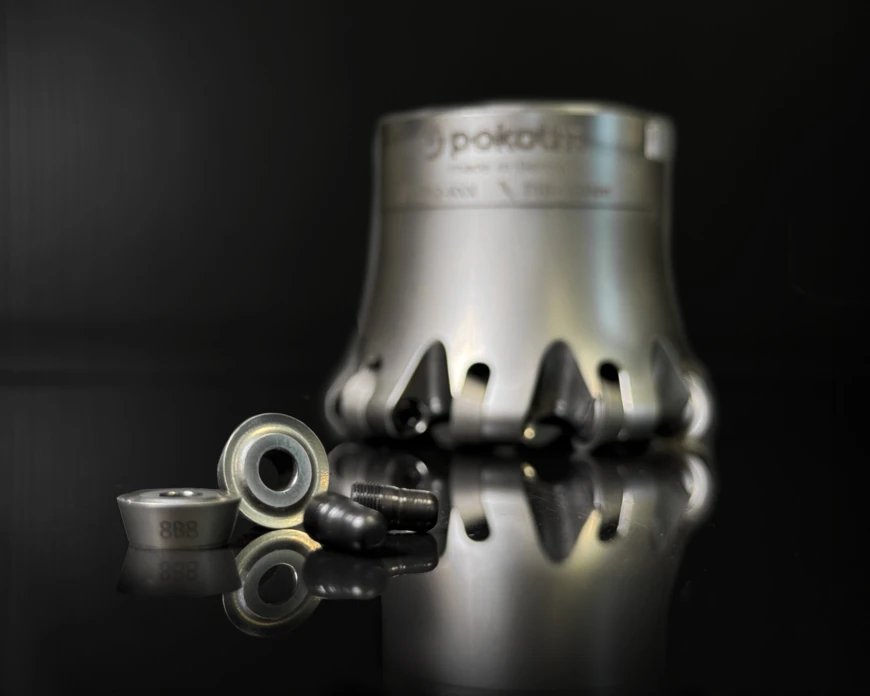

Spinworx round plates with pins in the foreground, a tool body in the background, all set against a dark background.
  • Homepage
  • Spinworx HT application data imperial

Spinworx® HT DR10

Coating
grade		SteelStainless steelCast ironSuper alloys and
titanium alloys		Hardened
materials
B3-P
1: 361 - 755
2: 0.006 - 0.024
3: 0.008 - 0.079		-P
1: 98 - 361
2: 0.004 - 0.016
3: 0.006 - 0.079		-
B7-P
1: 361 - 755
2: 0.006 - 0.024
3: 0.008 - 0.079		-P
1: 98 - 361
2: 0.004 - 0.016
3: 0.006 - 0.079		-
B8-P
1: 361 - 755
2: 0.006 - 0.024
3: 0.008 - 0.079		-P
1: 98 - 394
2: 0.004 - 0.016
3: 0.006 - 0.079		-

P: primary application | S: secondary application
1: spindle speed (SFM in feet per minute) | 2: feed rate (IPT in inches) | 3: depth of cut (DOC in inches)

Spinworx® HT DR12

Coating
grade		SteelStainless steelCast ironSuper alloys and
titanium alloys		Hardened
materials
B3-P
1: 361 - 755
2: 0.008 - 0.026
3: 0.012 - 0.098		-P
1: 98 - 361
2: 0.004 - 0.02
3: 0.008 - 0.098		-
B7-P
1: 361 - 755
2: 0.008 - 0.026
3: 0.012 - 0.098		-P
1: 98 - 361
2: 0.004 - 0.02
3: 0.008 - 0.098		-
B8-P
1: 361 - 755
2: 0.008 - 0.026
3: 0.012 - 0.098		 P
1: 98 - 361
2: 0.004 - 0.02
3: 0.008 - 0.026		-

P: primary application | S: secondary application
1: spindle speed (SFM in feet per minute) | 2: feed rate (IPT in inches) | 3: depth of cut (DOC in inches)

Spinworx® HT DR16

Coating
grade		SteelStainless steelCast ironSuper alloys and
titanium alloys		Hardened
materials
B3-P
1: 361 - 755
2: 0.008 - 0.028
3: 0.02 - 0.118		-P
1: 98 - 361
2: 0.006 - 0.02
3: 0.008 - 0.118		-
B7-P
1: 361 - 755
2: 0.008 - 0.028
3: 0.02 - 0.118		-P
1: 98 - 361
2: 0.006 - 0.02
3: 0.008 - 0.118		-
B8-P
1: 394 - 2477
2: 0.008 - 0.028
3: 0.02 - 0.118		-P
1: 131 - 394
2: 0.006 - 0.02
3: 0.008 - 0.118		-

P: primary application | S: secondary application
1: spindle speed (SFM in feet per minute) | 2: feed rate (IPT in inches) | 3: depth of cut (DOC in inches)
